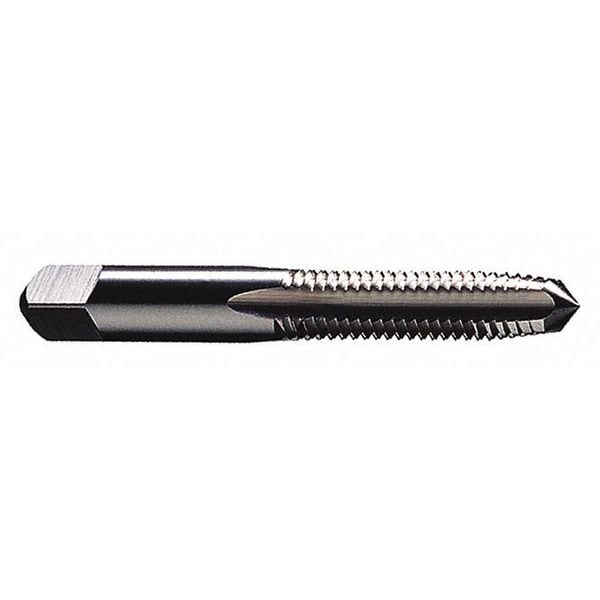

Spiral Point Tap, 1/4"-20, Plug, UNJC, 2 Flutes, Bright
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.255 in |
| Tap Material | High Speed Steel |
| Tap Dimension Type | Inch |
| Tap Chamfer | Plug |
| Tap Size | 1/4" |
| Tap Style | Spiral Point |
| Overall Length | 2-1/2 in |
| Number of Flutes | 2 |
| Tap Finish | Bright |
| Series | WGT |
| Thread Direction | Right Hand |
| Thread Length | 1 in |
| Tap Thread Type | UNJC |
| Tap Thread Size | 1/4"-20 |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Thread Limit | H7 |
| Threads per Inch | 20 |
| Material Grade - Machining | WP49EG |
| Measurement System | Fractional Inch |
| Thread Size | 1/4"-20 |
| Thread Standard | UNC |
| Class of Fit | H3 |
| 75% Thread Drill Size | #7 |
| Pitch Diameter Limit | H7 |
| Package Quantity | 1 |
