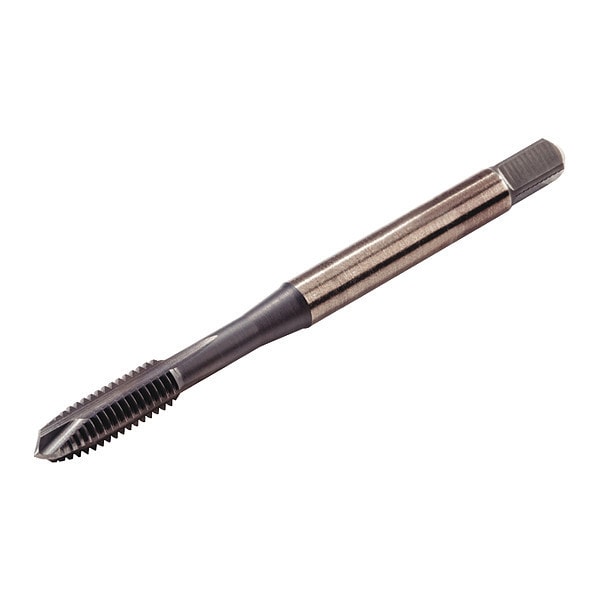

Spiral Point Tap, #4-40, Bottoming, UNC, 3 Flutes, CrC/C
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 9/64 in |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | #4 |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Overall Length | 1.8758 in |
| Number of Flutes | 3 |
| Tap Thread Type | UNC |
| Tap Finish | C, CrC |
| Thread Length | 0.5122 in |
| Standards | ANSI |
| Series | WGT |
| Tap Thread Size | #4-40 |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Thread Size | #4-40 |
| Material Grade - Machining | GP6520 |
| Measurement System | Pipe |
| Shank Length | 15/16 in |
| Thread Limit | H6 |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNC |
| Class of Fit | JIS 2 |
| 75% Thread Drill Size | 2.2 mm |
| Pitch Diameter Limit | H6 |
| Package Quantity | 1 |
