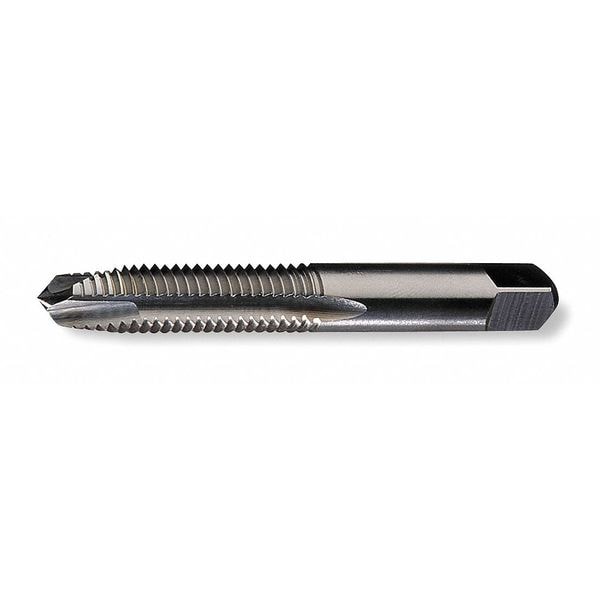

Spiral Point Tap, M3.5-0.6, Plug, Metric Coarse, 2 Flutes, Uncoated
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 3.57 mm |
| Tap Material | Vanadium High Speed Steel |
| Tap Dimension Type | Metric |
| Tap Chamfer | Plug |
| Tap Size | M3.5 |
| Tap Style | Spiral Point |
| Overall Length | 50.8 mm |
| Number of Flutes | 2 |
| Tap Thread Size | M3.5-0.6 |
| Pitch Diameter Limit | D4 |
| Number of Pieces | 1 |
| Standards | ANSI, USCTI |
| Tap Finish | Uncoated |
| List Number | 5351 |
| Thread Length | 17 mm |
| Tap Thread Type | Metric Coarse |
| Tap Grouping | Tap |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Size | M3.5 |
| Series | 5351/2351 |
| Measurement System | Metric |
| 65% Thread Drill Size | #31 |
| Square Size | 0.11 in |
| Thread Standard | Metric |
| Thread Pitch | 0.6 mm |
| Thread Limit | D4 |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Extended Neck | Yes |
| 55% Thread Drill Size | #31 |
| 75% Thread Drill Size | 2.9 mm |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application ISO Code | P |
| Secondary Material Application ISO Code | N, K, M |
| Shank Length | 1-9/32 in |
| Coolant Fed | Non-Coolant Through |
| Thread Size | M3.5x0.6 |
| Primary Material Application | Steel |
| Class of Fit | JIS 2 |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
