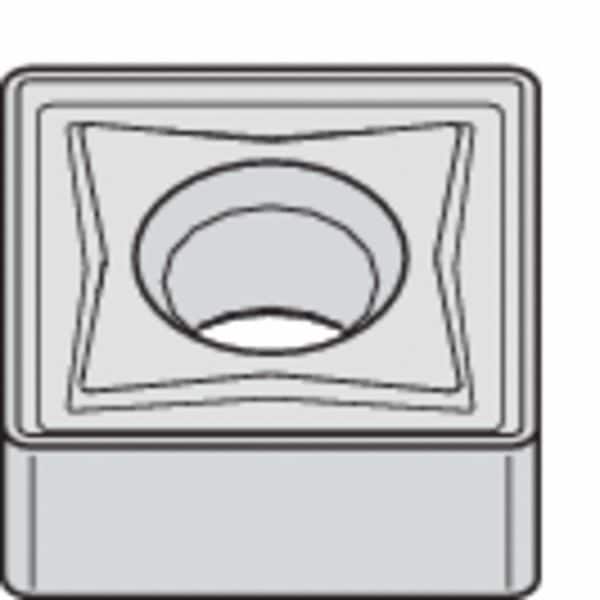

Square Turning Insert, Square, 5, SNMG, 4, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 5 |
| Insert Size | 544 |
| Chip-Breaker | Yes |
| Grade | TN20P |
| Corner Radius | 4 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | SNMG1506167N |
| ANSI Number | SNMG5447N |
| Relief Angle | 0 Degrees |
| Cast Iron (K) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Mounting Hole Dia. | 1/4 in |
| No. of Edges | 8 |
| Nose Radius | 0.063 in |
| Insert Thickness | 1/4 in |
| Coating | TiN |
| Mounting Style | Clamp |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Cutting Direction | Neutral |
| Number of Cutting Edges | 8 |
| Material - Machining | Carbide |
| Cutting Edge Length | 15.88 mm |
| Included Angle | 90 Degrees |
| Chip-Breaker Code | 7N |
| Clearance Angle | 0 deg |
| Secondary Material Application ISO Code | K |
| Shape | Square |
| Secondary Material Application | Cast Iron |
| ANSI Code | SNMG5447N |
| Thickness | 1/4 in |
| Cutting Application | Turning |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Chip-Breaker Style | Double Sided |
| Manufacturer Grade | TN20P |
| Finish - Machining | TiN |
| Insert Holding Type | Straight Hole |
| Primary Material Application ISO Code | P |
| Material | Carbide |
| Package Quantity | 1 |
