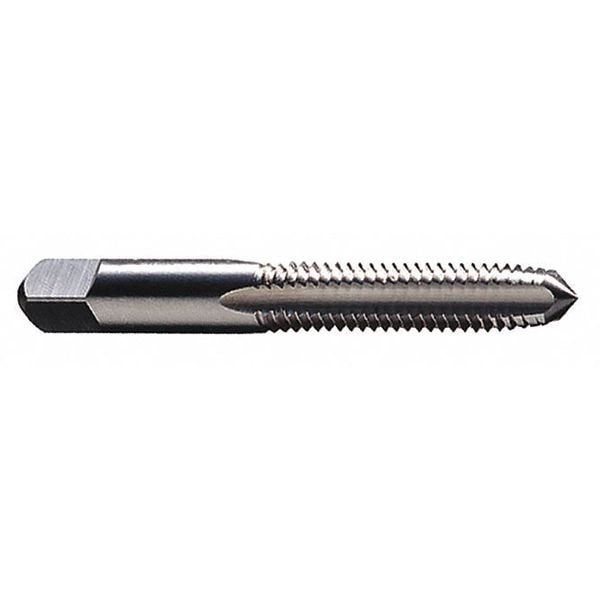

Straight Flute Hand Tap, 1-1/2"-12, Bottoming, 3 Flutes, UNC
| Item | Straight Flute Hand Tap |
|---|---|
| Tap Thread Size | 1-1/2"-12 |
| Tap Chamfer | Bottoming |
| Number of Flutes | 3 |
| Tap Thread Type | UNC |
| Overall Length | 6-3/8 in |
| Tap Style | Straight Flute |
| Standards | ANSI |
| Tap Finish | Bright |
| Number of Pieces | 1 |
| Tap Material | High Speed Steel |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| List Number | 7303 |
| Thread Length | 3 in |
| Tap Dimension Type | Inch |
| Pitch Diameter Limit | H11 |
| Shank Dia. | 1.2330" |
| Tap Size | 1-1/2" |
| Cutting Direction - Machining | Right Hand |
| Series | 7303 |
| Extended Neck | Yes |
| Threads per Inch | 12 |
| Tap Shank Standard | ANSI |
| Square Size | 0.925 in |
| 65% Thread Drill Size | 1.4296 in |
| Coolant Fed | Non-Coolant Through |
| Tap Length Standard | ANSI |
| Thread Size | 1 1/2"-12 |
| 75% Thread Drill Size | 1.4188 in |
| Primary Material Application ISO Code | N |
| Thread Limit | 2B |
| Secondary Material Application ISO Code | K, P, N, M |
| Class of Fit | 2 B |
| Thread Standard | UNF |
| Primary Material Application | Brass, Bronze, Copper, Aluminum |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Shank Length | 3 in |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
