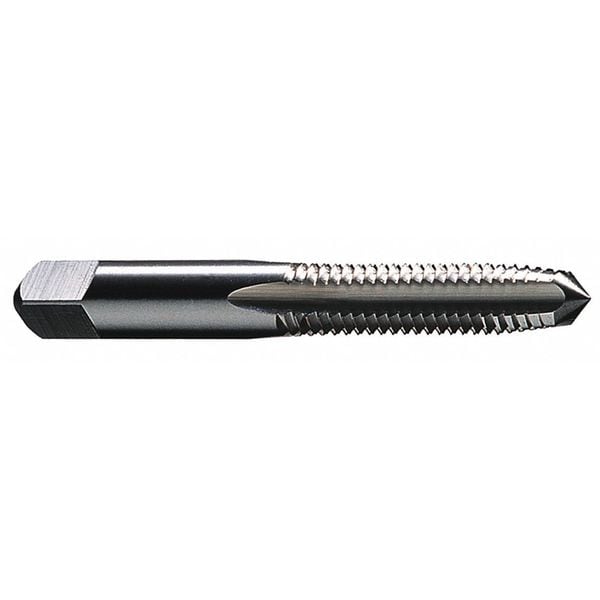

Straight Flute Hand Tap, 1-3/8"-12, Plug, 6 Flutes, UNF
| Item | Straight Flute Hand Tap |
|---|---|
| Tap Thread Size | 1-3/8"-12 |
| Tap Chamfer | Plug |
| Number of Flutes | 6 |
| Tap Thread Type | UNF |
| Tap Material | High Speed Steel |
| List Number | 5303/2303 |
| Tap Style | Straight Flute |
| Tap Finish | Uncoated |
| Tap Grouping | Tap |
| Shank Dia. | 1.108" |
| Tap Dimension Type | Inch |
| Thread Direction | Right Hand |
| Thread Length | 3 in |
| Number of Pieces | 1 |
| Overall Length | 6-1/16 in |
| Pitch Diameter Limit | H4 |
| Standards | USCTI 302 |
| Tap Size | 1-3/8" |
| Cutting Direction - Machining | Right Hand |
| Series | 5303/2303 |
| Coolant Fed | Non-Coolant Through |
| 65% Thread Drill Size | 1.3046 in |
| Extended Neck | No |
| Threads per Inch | 12 |
| Primary Material Application | Brass, Bronze, Copper, Aluminum |
| Shank Length | 3-1/32 in |
| Tap Shank Standard | ANSI 302 |
| Thread Size | 1 3/8"-12 |
| 75% Thread Drill Size | 1.2938 in |
| Square Size | 0.831 in |
| Tap Length Standard | ANSI 302 |
| Thread Limit | H4 |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | N |
| Thread Standard | UNF, UNJF |
| Spiral Direction | Neutral |
| Shank Type - Machining | Straight |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
