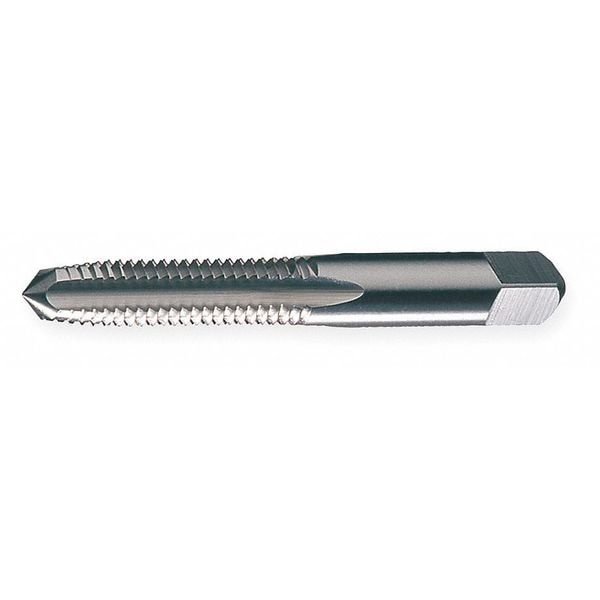

Straight Flute Hand Tap, 3/8"-16, Plug, 4 Flutes, UNC
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.381 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug |
| Tap Size | 3/8" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-15/16 in |
| Thread Direction | Right Hand |
| Number of Pieces | 1 |
| Tap Finish | Uncoated |
| Standards | ANSI, Unified and American National Threads |
| Tap Thread Type | UNC |
| Tap Thread Size | 3/8"-16 |
| Thread Length | 1-1/4 in |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H3 |
| List Number | 5303 |
| Cutting Direction - Machining | Right Hand |
| Size | 3/8" |
| Series | 5303/2303 |
| Coolant Fed | Non-Coolant Through |
| Tap Length Standard | ANSI 302 |
| Thread Limit | H3 |
| Tap Shank Standard | ANSI 302 |
| Square Size | 0.286 in |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | N |
| 55% Thread Drill Size | 8.4 mm |
| Shank Length | 1-11/16 in |
| Spiral Direction | Neutral |
| 75% Thread Drill Size | 5/16 in |
| Thread Size | 3/8"-16 |
| 65% Thread Drill Size | P |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Extended Neck | No |
| Shank Type - Machining | Straight |
| Thread Standard | UNC |
| Threads per Inch | 16 |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
