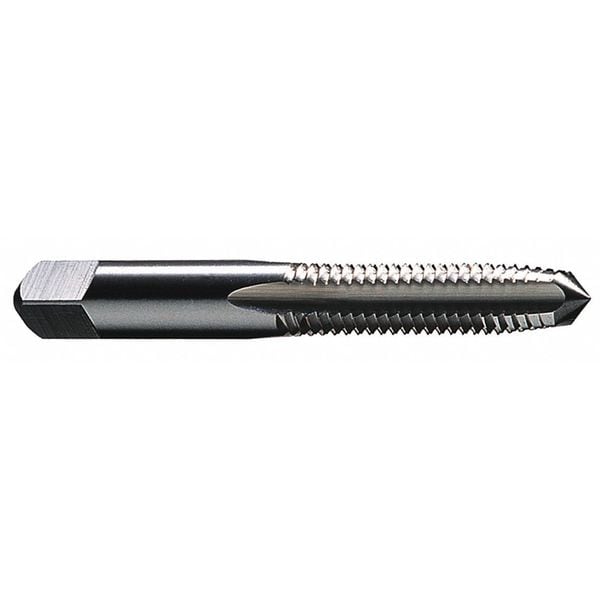

Straight Flute Hand Tap , #8-32 , Taper , 4 Flutes, UNC
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.168 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Taper |
| Tap Size | #8 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-1/8 in |
| Thread Direction | Right Hand |
| Standards | USCTI 302 |
| Tap Thread Type | UNC |
| Tap Thread Size | #8-32 |
| Tap Finish | Oxide |
| Thread Length | 3/4 in |
| Pitch Diameter Limit | H3 |
| List Number | 5305 |
| Number of Pieces | 1 |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 5305 |
| Tap Length Standard | ANSI |
| Thread Standard | UNC |
| Shank Length | 1-3/8 in |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P |
| Spiral Direction | Neutral |
| 55% Thread Drill Size | 3.6 mm |
| Secondary Material Application ISO Code | K, N, M |
| Primary Material Application | Steel |
| Shank Type - Machining | Straight |
| 65% Thread Drill Size | 3.5 mm |
| Thread Size | #8-32 |
| Thread Limit | H3 |
| Measurement System | Pipe |
| Square Size | 0.131 in |
| Threads per Inch | 32 |
| Extended Neck | Yes |
| Tap Shank Standard | ANSI |
| 75% Thread Drill Size | 3.4 mm |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
