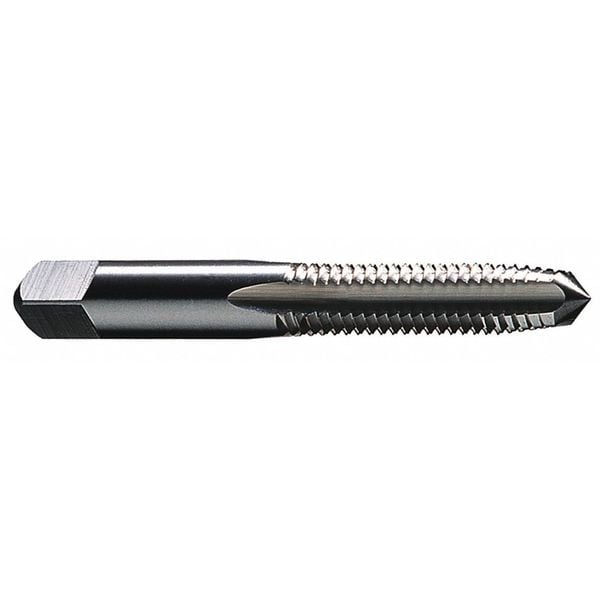

Straight Flute Hand Tap, Bottoming 2 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.194 in |
| Tap Dimension Type | Inch |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Tap Size | #10 |
| Tap Style | Straight Flute |
| Number of Flutes | 2 |
| Overall Length | 2-3/8 in |
| List Number | 5305/2305 |
| Tap Thread Size | #10-32 |
| Thread Length | 7/8 in |
| Tap Finish | Uncoated |
| Tap Grouping | Tap |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Tap Thread Type | UNC |
| Pitch Diameter Limit | H3 |
| Standards | USCTI 302 |
| Cutting Direction - Machining | Right Hand |
| Series | 5305/2305 |
| Thread Limit | H3 |
| Thread Standard | UNF |
| Shank Type - Machining | Straight |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Thread Size | #10-32 |
| Tap Shank Standard | ANSI 302 |
| 75% Thread Drill Size | #21 |
| Shank Length | 1-1/2 in |
| Coolant Fed | Non-Coolant Through |
| Square Size | 0.152 in |
| Measurement System | Pipe |
| 65% Thread Drill Size | 4.15 mm |
| Tap Length Standard | ANSI 302 |
| 55% Thread Drill Size | 4.25 mm |
| Threads per Inch | 32 |
| Spiral Direction | Neutral |
| Primary Material Application ISO Code | N |
| Extended Neck | Yes |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
