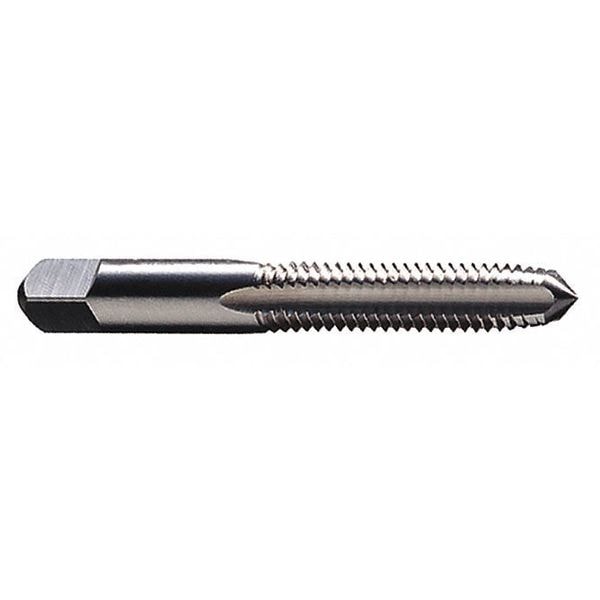

Straight Flute Hand Tap, Bottoming 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 1.021 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | 1-1/4" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 3 |
| Overall Length | 5-3/4 in |
| Thread Direction | Right Hand |
| Tap Thread Type | UNF |
| Tap Grouping | Tap |
| Standards | ANSI |
| Number of Pieces | 1 |
| Thread Length | 2-9/16 in |
| Tap Finish | Bright |
| List Number | 7303 |
| Tap Thread Size | 1-1/4"-8 |
| Pitch Diameter Limit | H6 |
| Cutting Direction - Machining | Right Hand |
| Series | 7303 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Thread Standard | UNC |
| Primary Material Application ISO Code | N |
| Shank Type - Machining | Straight |
| 65% Thread Drill Size | 1.1445 in |
| Shank Length | 3-7/16 in |
| Square Size | 0.766 in |
| 75% Thread Drill Size | 1.1282 in |
| Measurement System | Fractional Inch |
| Tap Shank Standard | ANSI |
| Class of Fit | 2 B |
| Secondary Material Application ISO Code | K, N, P, M |
| Threads per Inch | 8 |
| Extended Neck | Yes |
| Thread Limit | 2B |
| Spiral Direction | Neutral |
| Tap Length Standard | ANSI |
| Coolant Fed | Non-Coolant Through |
| Thread Size | 1 1/4"-8 |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
