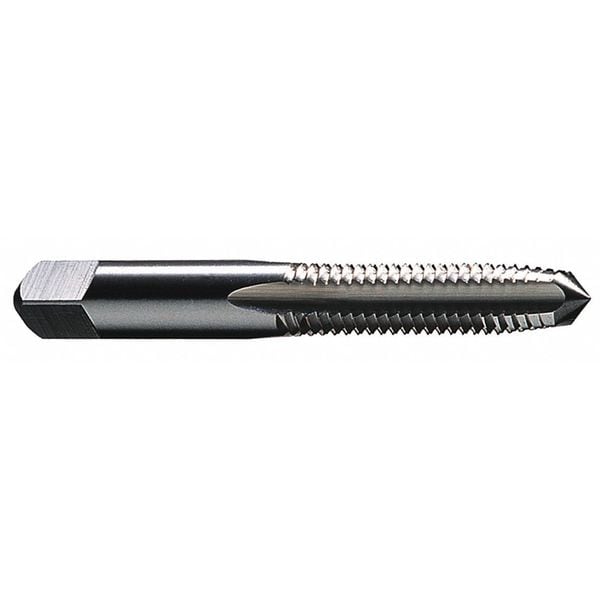

Straight Flute Hand Tap, Bottoming 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/2" |
| Tap Style | Straight Flute |
| Overall Length | 3-3/8 in |
| Number of Flutes | 3 |
| Standards | USCTI 302 |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| Tap Finish | Uncoated |
| Tap Thread Size | 1/2"-13 |
| Pitch Diameter Limit | H3 |
| Number of Pieces | 1 |
| List Number | 5303/2303 |
| Tap Thread Type | UNC |
| Thread Length | 1-21/32 in |
| Cutting Direction - Machining | Right Hand |
| Series | 5303/2303 |
| Shank Type - Machining | Straight |
| 55% Thread Drill Size | 11.3 mm |
| Tap Length Standard | ANSI 302 |
| Tap Shank Standard | ANSI 302 |
| Extended Neck | No |
| 75% Thread Drill Size | 27/64 in |
| Threads per Inch | 13 |
| Square Size | 0.275 in |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | N |
| 65% Thread Drill Size | 11 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Thread Standard | UNC |
| Spiral Direction | Neutral |
| Thread Limit | H3 |
| Thread Size | 1/2"-13 |
| Shank Length | 1-23/32 in |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
