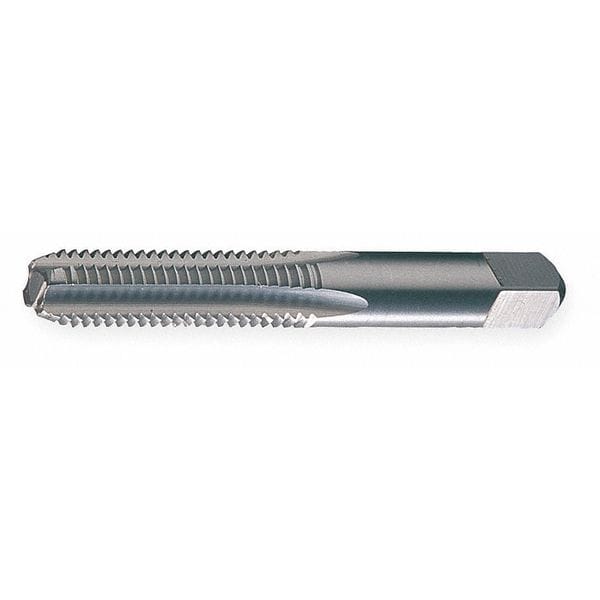

Straight Flute Hand Tap Bottoming, 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.141 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #4 |
| Tap Style | Straight Flute |
| Overall Length | 1-7/8 in |
| Number of Flutes | 3 |
| Tap Finish | Uncoated |
| Tap Thread Type | UNC |
| Standards | ANSI, Unified and American National Threads |
| Tap Grouping | Tap |
| Tap Thread Size | #4-40 |
| List Number | 5,305 |
| Thread Length | 9/16 in |
| Pitch Diameter Limit | H2 |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Series | 5305/2305 |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Pipe |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Tap Shank Standard | ANSI 302 |
| 65% Thread Drill Size | 3/32 in |
| Extended Neck | Yes |
| Shank Length | 1-5/16 in |
| Primary Material Application ISO Code | N |
| Thread Standard | UNC |
| Tap Length Standard | ANSI 302 |
| Square Size | 0.11 in |
| 55% Thread Drill Size | 3/32 in |
| 75% Thread Drill Size | 2.2 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Thread Limit | H2 |
| Thread Size | #4-40 |
| Threads per Inch | 40 |
| Helix Angle | 0 Degrees |
| Size | #4 |
| Package Quantity | 1 |
