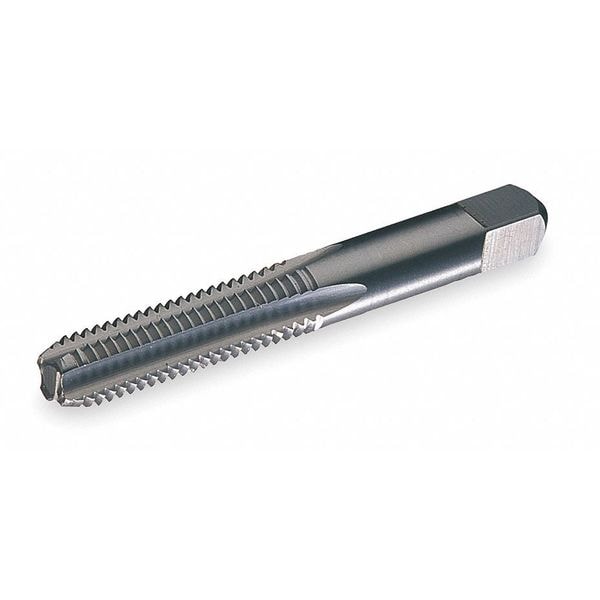

Straight Flute Hand Tap, Bottoming, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.194 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #10 |
| Tap Style | Straight Flute |
| Overall Length | 2-3/8 in |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Thread Length | 7/8 in |
| Tap Grouping | Tap |
| Standards | ANSI, USCTI 302 |
| Tap Thread Type | UNC |
| Tap Finish | Uncoated |
| Pitch Diameter Limit | H3 |
| Tap Thread Size | #10-32 |
| Thread Direction | Left Hand |
| List Number | 5305L/5303L |
| Cutting Direction - Machining | Right Hand |
| Size | #10 |
| Series | 5305L/5303L |
| Thread Size | #10-32 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel |
| 55% Thread Drill Size | 4.25 mm |
| Measurement System | Pipe |
| 65% Thread Drill Size | 4.15 mm |
| Primary Material Application ISO Code | N, P, M |
| Tap Shank Standard | ANSI |
| 75% Thread Drill Size | #21 |
| Spiral Direction | Neutral |
| Tap Length Standard | ANSI |
| Square Size | 0.152 in |
| Thread Limit | H3 |
| Shank Length | 1-7/8 in |
| Threads per Inch | 32 |
| Thread Standard | UNF |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
