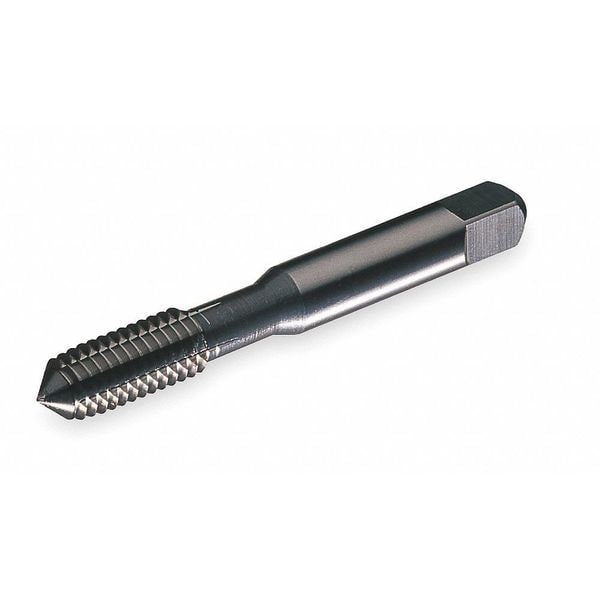

Thread Forming Tap, 1/2"-20, Bottoming, Uncoated, 3 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | 1/2"-20 |
| Tap Chamfer | Bottoming |
| Tap Finish | Uncoated |
| Number of Flutes | 3 |
| Tap Style | Thread Forming |
| Thread Length | 15/16 in |
| Tap Material | Vanadium High Speed Steel |
| Shank Dia. | 0.367 in |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H5 |
| Number of Pieces | 1 |
| Overall Length | 3-3/8 in |
| Tap Size | 1/2" |
| Tap Thread Type | UNC |
| Tap Dimension Type | Inch |
| List Number | 5502 |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| Measurement System | Decimal Inch |
| Primary Material Application ISO Code | P |
| Thread Size | 1/2"-20 |
| Thread Standard | UNC |
| Thread Limit | H5 |
| Series | 2502/5502 |
| Secondary Material Application ISO Code | M, K, N |
| Shank Length | 2-7/16 in |
| 65% Thread Drill Size | 12.1 mm |
| Material Grade - Machining | 5502 |
| Features | Blind Holes, Bottoming Entry Taper, Forming Taps |
| Primary Material Application | Steel |
| Secondary Material Application | Cast Iron, Brass, Bronze, Copper, Aluminum, Stainless Steel |
| Square Size | 0.275 in |
| Spiral Direction | Neutral |
| 55% Thread Drill Size | 12.2 mm |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 20 |
| Extended Neck | No |
| 75% Thread Drill Size | 12.05 mm |
| Helix Angle | 0 Degrees |
| Class of Fit | 3B |
| Package Quantity | 1 |
