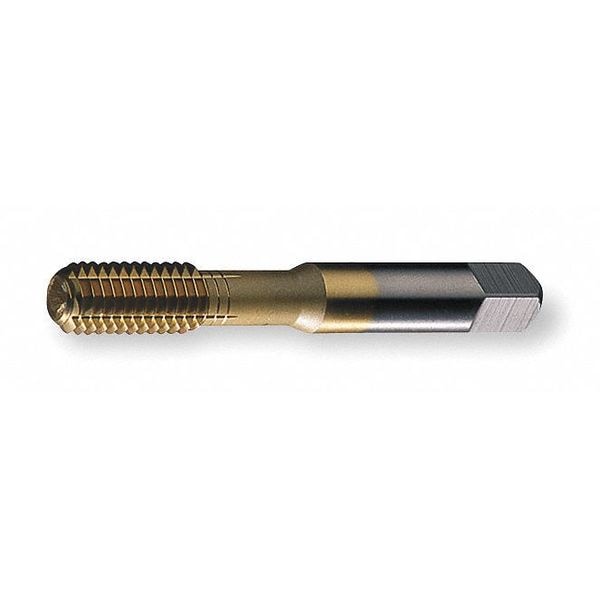

Thread Forming Tap, M10-1.50, Bottoming, Bright, 2 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | M10-1.50 |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Number of Flutes | 2 |
| Tap Material | High Speed Steel |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Tap Style | Thread Forming |
| Tap Thread Type | Metric Coarse |
| Tap Dimension Type | Metric |
| Shank Dia. | 9.7 mm |
| Thread Length | 19.05 mm |
| Tap Grouping | Tap |
| Pitch Diameter Limit | D10 |
| Tap Size | M10 |
| Overall Length | 74 mm |
| List Number | 5512 |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| 65% Thread Drill Size | 9.3 mm |
| Spiral Direction | Neutral |
| Primary Material Application | Brass, Copper, Bronze, Aluminum |
| Shank Length | 1-11/16 in |
| 75% Thread Drill Size | 9.2 mm |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | No |
| Thread Size | M10x1.5 |
| Features | Blind Holes, Bottom Entry Taper, Flood Coolant, Forming Taps |
| Series | 2512/5512 |
| Material Grade - Machining | 5512 |
| Measurement System | Metric |
| Thread Limit | D10 |
| Thread Standard | Metric |
| Primary Material Application ISO Code | N |
| 55% Thread Drill Size | 9.4 mm |
| Thread Pitch | 1.5 mm |
| Helix Angle | 0 Degrees |
| Class of Fit | 6H |
| Package Quantity | 1 |
