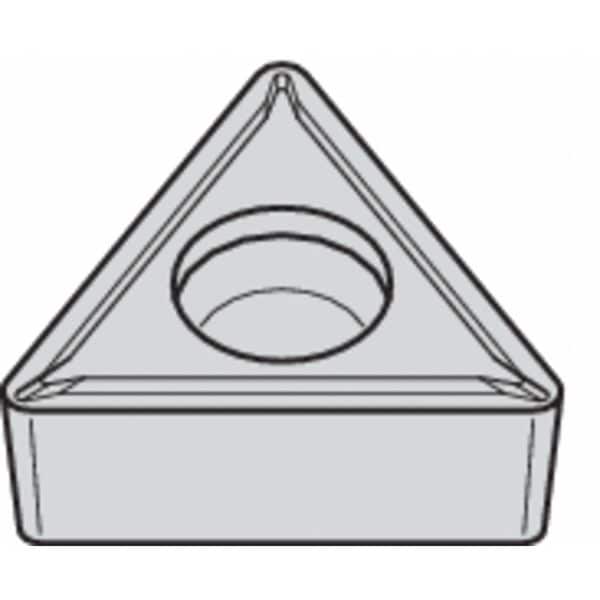

Triangle Turning Insert, Triangle, 3, TCGT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCGT |
| Inscribed Circle | 3 |
| Insert Size | 3,251 |
| Chip-Breaker | Yes |
| Grade | TN10U |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | TCGT16T3041P |
| For Use With | Toolholders, Boring Bars |
| Coating | AlTiN |
| Mounting Hole Dia. | 0.173 in |
| Nose Radius | 0.016 in |
| Insert Thickness | 0.1563 in |
| Relief Angle | 7 Degrees |
| Non Ferrous (N) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Mounting Style | Screw |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 3 |
| ANSI Number | TCGT32511P |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | Yes |
| Coating Process | PVD |
| Number of Cutting Edges | 3 |
| Measurement System | Fractional Inch |
| Chip-Breaker Style | On One Side |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Primary Material Application ISO Code | M, S |
| Thickness | 0.1562 in |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| ANSI Code | TCGT32511P |
| Finish - Machining | AlTiN |
| Clearance Angle | 7 deg |
| Through Hole Inside Dia. | 0.173 in |
| Material - Machining | Carbide |
| Cutting Application | Outside and Inside Diameter Turning |
| Shape | Triangle |
| Manufacturer Grade | TN10U |
| Cutting Edge Length | 16.5 mm |
| Included Angle | 60 Degrees |
| Secondary Material Application ISO Code | K, P, N |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Chip-Breaker Code | 1P |
| Material | Carbide |
| Package Quantity | 1 |
