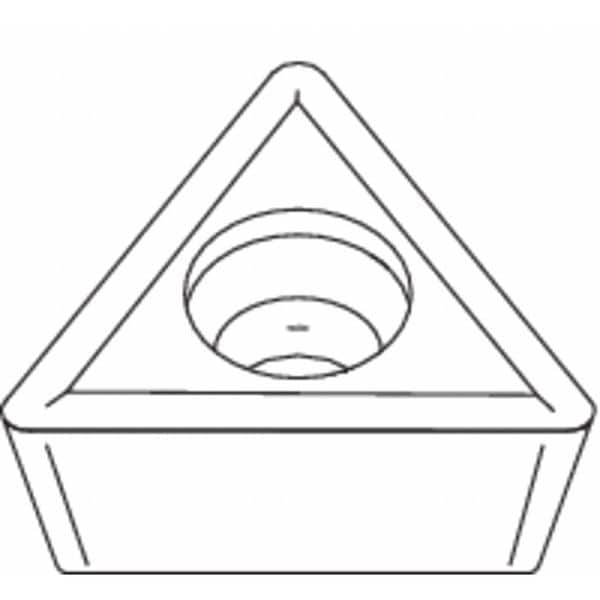

Triangle Turning Insert, Triangle, 3, TCMT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 3 |
| Insert Size | 3,251 |
| Chip-Breaker | Yes |
| Grade | THM |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | TCMT16T304 |
| Cast Iron (K) Compatibility | Yes |
| Relief Angle | 7 Degrees |
| Mounting Hole Dia. | 0.173 in |
| ANSI Number | TCMT3251 |
| For Use With | Toolholders, Boring Bars |
| Stainless (M) Compatibility | No |
| Mounting Style | Screw |
| No. of Edges | 3 |
| Insert Thickness | 0.1563 in |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Nonferrous (N), Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Coating | Uncoated |
| Nose Radius | 0.016 in |
| Cutting Application | Outside and Inside Diameter Turning |
| Shape | Triangle |
| Thickness | 0.1562 in |
| ANSI Code | TCMT3251 |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Cast Iron, Aluminum, Hardened Steel |
| Number of Cutting Edges | 3 |
| Cutting Edge Length | 16.5 mm |
| Through Hole Inside Dia. | 0.173 in |
| Finish - Machining | Bright |
| Clearance Angle | 7 deg |
| Included Angle | 60 Degrees |
| Chip-Breaker Style | On One Side |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | S, K, N, H |
| Manufacturer Grade | THM |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
