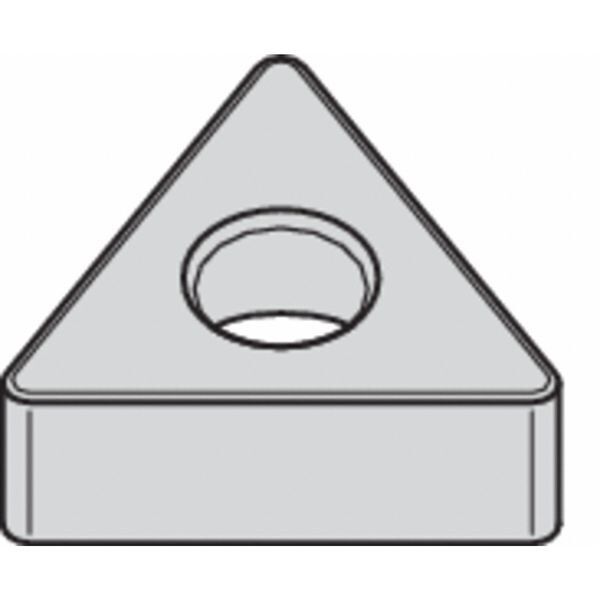

Triangle Turning Insert, Triangle, 3, TNGA, 2, Ceramic
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNGA |
| Inscribed Circle | 3 |
| Insert Size | 332 |
| Chip-Breaker | No |
| Grade | CW2015 |
| Corner Radius | 2 |
| Insert Material | Ceramic |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | TNGA160408T02020 |
| Insert Thickness | 3/16 in |
| Mounting Hole Dia. | 0.15 in |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | TNGA332T0820 |
| Stainless (M) Compatibility | No |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.031 in |
| Relief Angle | 0 Degrees |
| Cutting Direction | Neutral |
| Mounting Style | Clamp |
| No. of Edges | 6 |
| For Use With | Toolholders, Boring Bars |
| Coating | Uncoated |
| Workpiece Compatibility | Cast Iron (K) |
| Steel (P) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Shape | Triangle |
| Material Grade - Machining | Alumina |
| ANSI Code | TNGA332T0820 |
| Cutting Edge Length | 16.5 mm |
| Through Hole Inside Dia. | 0.15 in |
| Thickness | 3/16 in |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | K, H |
| Material - Machining | Ceramic |
| Insert Holding Type | Straight Hole |
| Manufacturer Grade | CW2015 |
| Cutting Application | Outside and Inside Diameter Turning |
| Number of Cutting Edges | 6 |
| Primary Material Application | Cast Iron, Hardened Steel |
| Clearance Angle | 0 deg |
| Cutting Edge | Chamfered |
| Finish - Machining | Bright |
| Included Angle | 60 Degrees |
| Material | Ceramic |
| Package Quantity | 1 |
