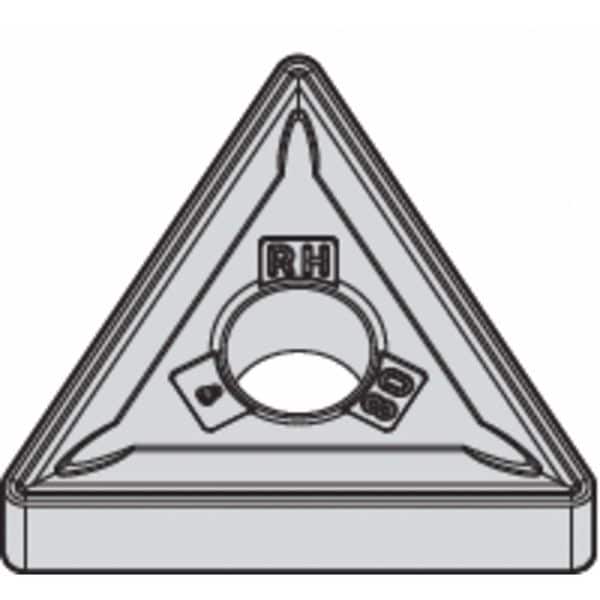

Triangle Turning Insert, Triangle, 6, TNMG, 6, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNMG |
| Inscribed Circle | 6 |
| Insert Size | 666 |
| Chip-Breaker | Yes |
| Grade | WP35CT |
| Corner Radius | 6 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | TNMG330924RH |
| Insert Thickness | 3/8 in |
| Nose Radius | 0.094 in |
| Mounting Hole Dia. | 0.313 in |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | Yes |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | No |
| Coating | TiN |
| No. of Edges | 6 |
| Mounting Style | Clamp |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | TNMG666RH |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Stainless (M) Compatibility | Yes |
| Included Angle | 60 Degrees |
| Material - Machining | Carbide |
| Shape | Triangle |
| Insert Holding Type | Straight Hole |
| Manufacturer Grade | WP35CT |
| ANSI Code | TNMG666RH |
| Primary Material Application ISO Code | P |
| Finish - Machining | TiN |
| Secondary Material Application | Stainless Steel |
| Cutting Edge Length | 33 mm |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Cutting Application | Outside and Inside Diameter Turning |
| Thickness | 3/8 in |
| Chip-Breaker Code | RH |
| Secondary Material Application ISO Code | M |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 deg |
| Coating Process | CVD |
| Through Hole Inside Dia. | 5/16 in |
| Number of Cutting Edges | 6 |
| Material | Carbide |
| Package Quantity | 1 |
