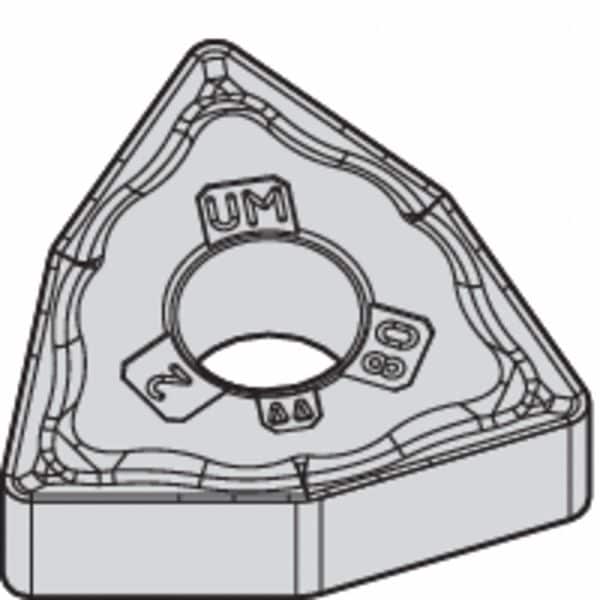

Turning Insert, Trigon, 4, WNMG, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | WM25CT |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | WNMG080404UM |
| No. of Edges | 6 |
| Mounting Style | Clamp |
| Insert Thickness | 3/16 in |
| Stainless (M) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Steel (P) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Coating | TiN |
| Relief Angle | 0 Degrees |
| ANSI Number | WNMG431UM |
| Nose Radius | 0.016 in |
| Mounting Hole Dia. | 0.203 in |
| Non Ferrous (N) Compatibility | No |
| Clearance Angle | 0 deg |
| Secondary Material Application | Nickel, Steel, Titanium |
| Thickness | 3 |
| Primary Material Application | Stainless Steel |
| Shape | Trigon |
| Cutting Edge Length | 8.69 mm |
| Chip-Breaker Code | UM |
| Chip-Breaker Style | Double Sided |
| Cutting Application | Outside and Inside Diameter Turning |
| Manufacturer Grade | WM25CT |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | M |
| Secondary Material Application ISO Code | P, S |
| Number of Cutting Edges | 6 |
| Finish - Machining | TiN |
| Measurement System | Fractional Inch |
| ANSI Code | WNMG431UM |
| Insert Holding Type | Straight Hole |
| Coating Process | CVD |
| Through Hole Inside Dia. | 0.203 in |
| Included Angle | 80 Degrees |
| Material | Carbide |
| Package Quantity | 1 |
