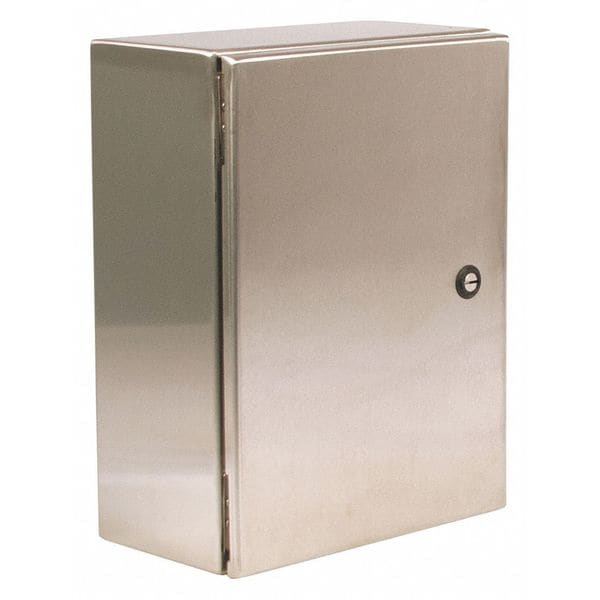

1/4 Turn Latch Electrical Enclosures, 16 in H, 10 in D, 20 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 16 in |
| Nominal Depth | 10 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure NEMA Rating | NEMA 4X |
| Usable Opening Depth | 10 in |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Solid / Clear Cover | Solid |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure Cover Type | Hinged |
| Interior Panel | Mfr No. NP2016C, NP2016CG |
| Metal Gauge | 16 ga |
| Series | Ultimate |
| Gasket | Seamless Foam-In-Place |
| Enclosure Cover Features | 1/4 Turn Latch |
| IP Rating | IP66 |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 16 ga |
| Gasket Material | Seamless Foam-In-Place |
| Compatible Panel Model Number | NP1620C, NP1620CG, NP1620SSC |
| Package Quantity | 1 |
