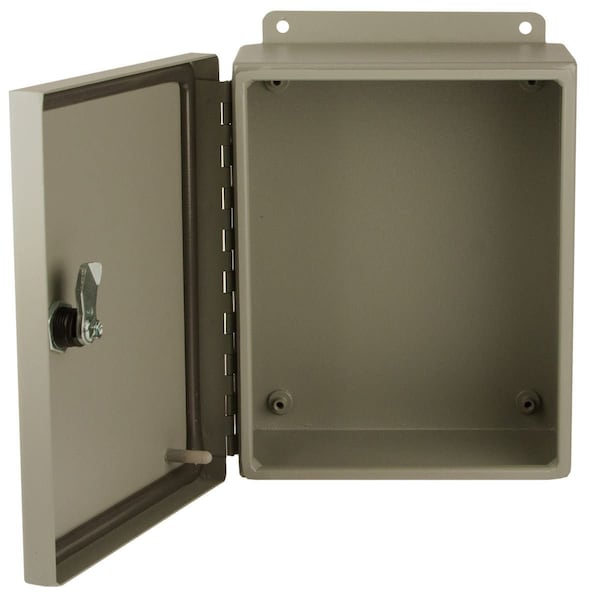

1/4 Turn Latch Electrical Enclosures, 16 in H, 8 in D, 14 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 14 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Carbon Steel |
| Features | New 1/4 turn style JIC enclosure makes for easy door seal; Eliminates the need for exterior clips to secure door shut; 1/4 turn latch is interchangeable with many locking designs available to better suit the customer; FTC flange around the entire door opening to channel liquids away; ANSI 61 gray powder coat finish |
| Solid / Clear Cover | Solid |
| Standards | cULus |
| Enclosure Cover Type | Hinged |
| Capacity | 1,792 cu in |
| Weight | 20 lb. |
| Application | Ultimate Mini-Max™ Series enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water and other contaminants are present. Streamlined styling, 1/4 turn latch and attractive durable finish compliment any high tech electronic equipment. |
| Package Quantity | 1 |
