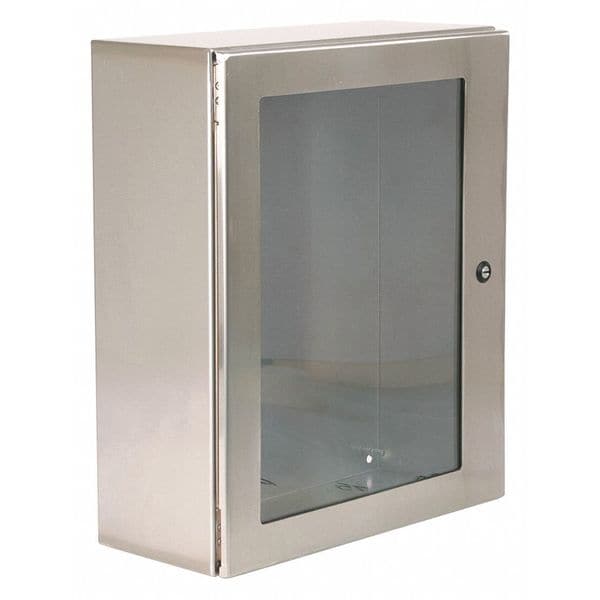

1/4 Turn Latch Electrical Enclosures, 24 in H, 6 in D, 20 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 6 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid with Window |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | 1/4 Turn Latch, Clear Window |
| Solid / Clear Cover | Clear |
| Enclosure NEMA Rating | NEMA 4X |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Enclosure Cover Type | Hinged |
| Usable Opening Depth | 6 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Material of Enclosure | 304 Stainless Steel |
| Interior Panel | Mfr No. NP2420C, NP2420CG |
| Series | Ultimate |
| Gasket | Seamless Foam-In-Place |
| IP Rating | IP66 |
| Capacity | 2,880 cu in |
| Weight | 41 lb. |
| Application | Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP2420C, NP2420CG |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
