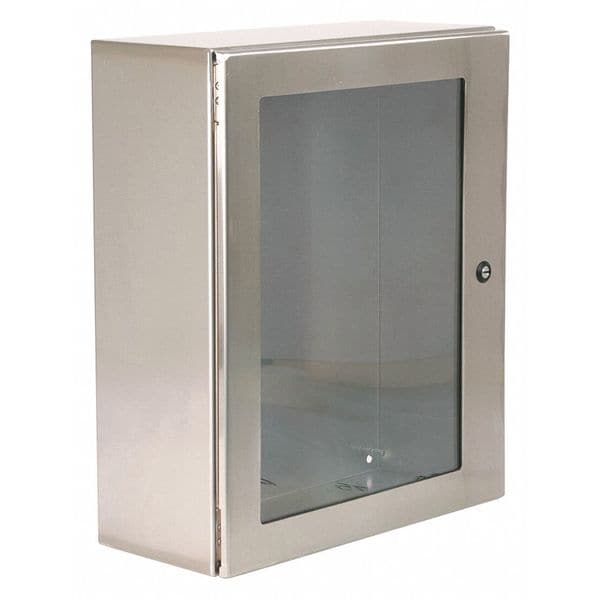

1/4 Turn Latch Electrical Enclosures, 30 in H, 20 in D, 24 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 30 in |
| Nominal Depth | 20 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid with Window |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | 1/4 Turn Latch, Clear Window |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | 304 Stainless Steel |
| Interior Panel | Mfr No. NP3024C, NP3024CG |
| Gasket | Seamless Foam-In-Place |
| Usable Opening Depth | 20 in |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Series | Ultimate |
| Enclosure NEMA Rating | NEMA 4X |
| Solid / Clear Cover | Clear |
| Metal Gauge | 14 ga |
| IP Rating | IP66 |
| Capacity | 14,400 cu in |
| Weight | 99 lb. |
| Application | Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP3024C, NP3024CG |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Package Quantity | 1 |
