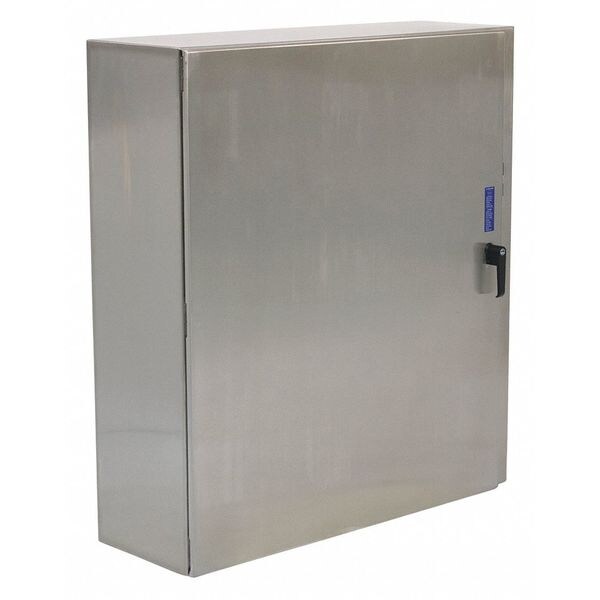

1/4 Turn Latch Electrical Enclosures, 30 in H, 8 in D, 26 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 26 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Natural |
| Mounting | Wall |
| Cover Style | Solid |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12 |
| Enclosure Cover Features | Latch with 2 or 3 Internal Locking Points |
| Usable Opening Depth | 8 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Type | Hinged |
| Gasket | Seamless Foam-In-Place |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Metal Gauge | 14 ga |
| Solid / Clear Cover | Solid |
| Series | Ultimate |
| Interior Panel | Mfr No. NP3024C, NP3024CG |
| IP Rating | IP66 |
| Application | These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Cover Material Thickness | 14 ga |
| Gasket Material | Polyurethane |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | NP3024C, NP3024CG |
| Package Quantity | 1 |
