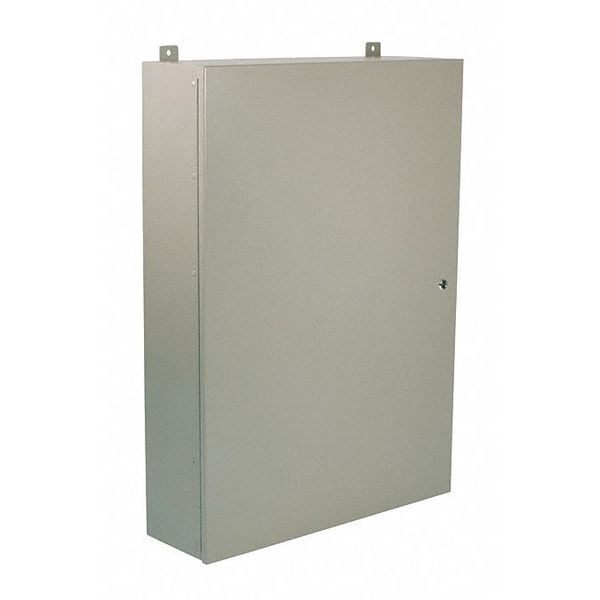

1/4 Turn Latch Electrical Enclosures, 42 in H, 13 in D, 30 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 42 in |
| Nominal Depth | 13 in |
| Closure Method | 1/4 Turn Latch |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Standards | cULus |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | Carbon Steel |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuous hinged doors. Doors are easily removable by pulling the hinged pin. Collar studs provided for mounting optional back panels. External mounting feet provided. Grounding provisions provided. Doors are furnished standard with flushmount quarter-turn latch. |
| Solid / Clear Cover | Solid |
| Enclosure NEMA Rating | NEMA 1 |
| Application | Designed for use in control and instrumentation applications in areas which do not require oil-tight and dust-tight specifications. |
| Package Quantity | 1 |
