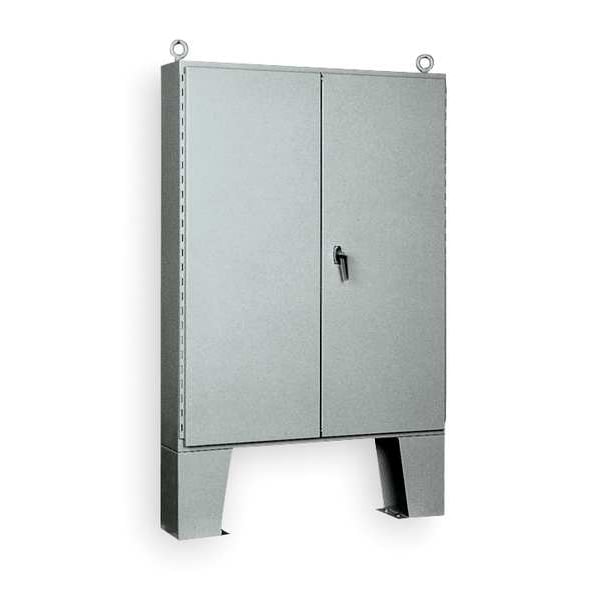

3 Point Latch with Padlock Handle Electrical Enclosures, 72 in H, 16 in D, 72 in W, 12, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 72 in |
| Nominal Height | 72 in |
| Nominal Depth | 16 in |
| NEMA Enclosure Rating | 12 |
| Enclosure Material | Steel |
| Closure Method | Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Cover Style | Solid |
| Usable Opening Depth | 15.88 in |
| Gasket | Seamless Polyurethane Poured in Place |
| Includes | 12 in Floor Kit |
| Metal Gauge | 12 ga |
| Enclosure NEMA Rating | NEMA 12 |
| Interior Panel | 1ZHH3 |
| Standards | CSA Certified, cULus, UL Listed |
| Enclosure Cover Features | Keyed Handle |
| Series | N12 (large) |
| Material of Enclosure | Carbon Steel |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Hinged |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| Body Material Thickness | 12 ga |
| Compatible Panel Model Number | NPDD7272, NPDD7272G |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Dust Tight |
| Package Quantity | 1 |
