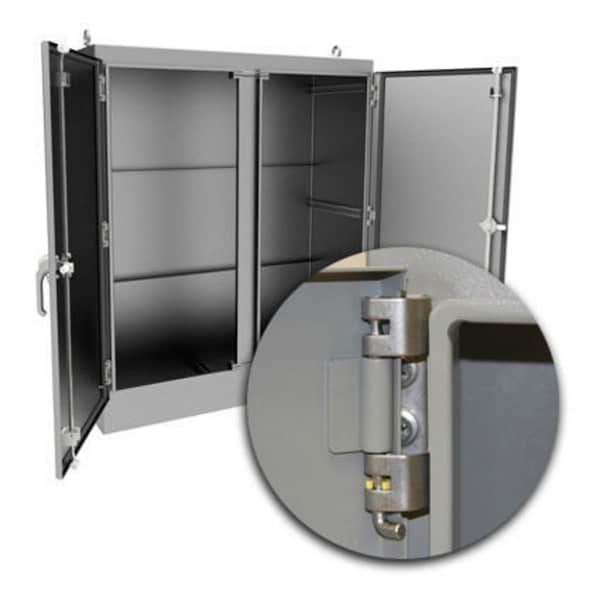

3 Point Latch with Padlock Handle Electrical Enclosures, 90 in H, 20 in D, 72 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 72 in |
| Nominal Height | 90 in |
| Nominal Depth | 20 in |
| Closure Method | Latch |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Standards | cULus |
| Material of Enclosure | Carbon Steel |
| Enclosure Cover Type | Hinged |

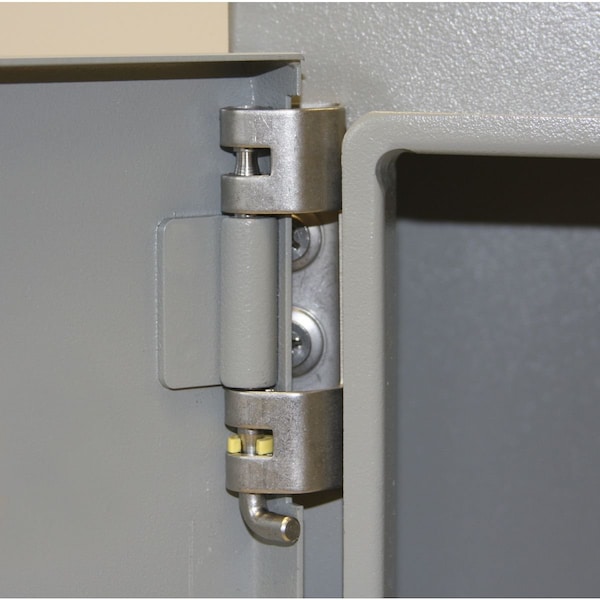

| Features | Body and doors are fabricated from carbon steel; Entire WRD series features our KwikHinge™ technology which allows enclosure doors to be quickly and easily removed by simply sliding the Heavy-Duty, 316 Stainless Steel, hinge pin; Seams are continuously welded and ground smooth and the doors are sealed with a poured in place gaskets; This enclosure also includes back panel and 3-point keylocking/padlocking combo handle |
| Solid / Clear Cover | Solid |
| Series | KwikHinge |
| Enclosure NEMA Rating | NEMA 4 |
| Weight | 783 lb. |
| Capacity | 129,600 cu in |
| Package Quantity | 1 |
