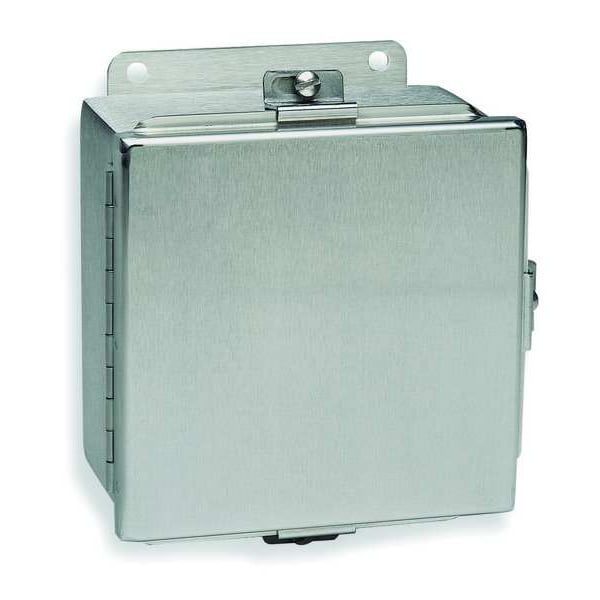

304 Stainless Steel Electrical Enclosures, 10 in H, 4 in D, 8 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #3 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 3A928 |
| IP Rating | IP66 |
| Usable Opening Depth | 3.88 in |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 16 ga |
| Enclosure Cover Features | Screwdown Clamps |
| Features | External Mounting Plates |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | BN4-CHSS |
| Enclosure Material | Stainless Steel |
| Includes | Clamp, Stainless Steel Screws |
| Capacity | 320 cu in |
| Weight | 9 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Style | Solid |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | P1008, P1008G, P1008SS |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
