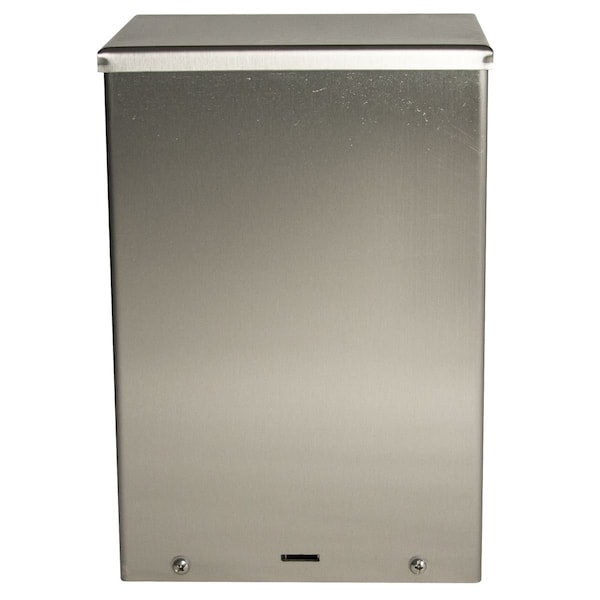

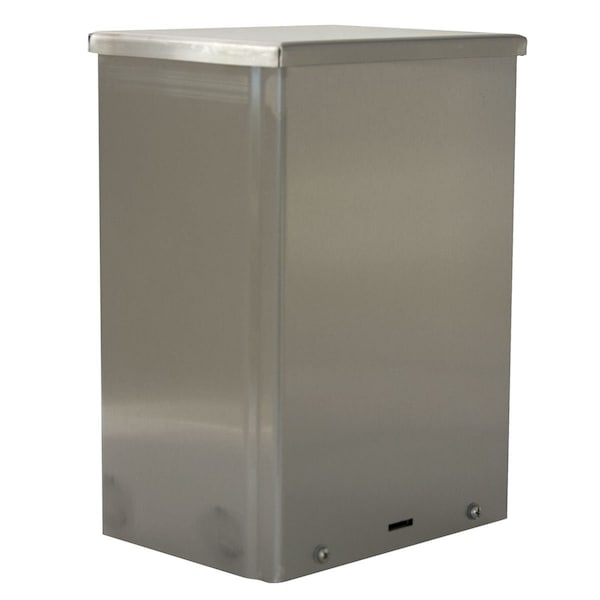

304 Stainless Steel Electrical Enclosures, 12 in H, 4 in D, 10 in W, NEMA 3R, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 12 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | cULus |

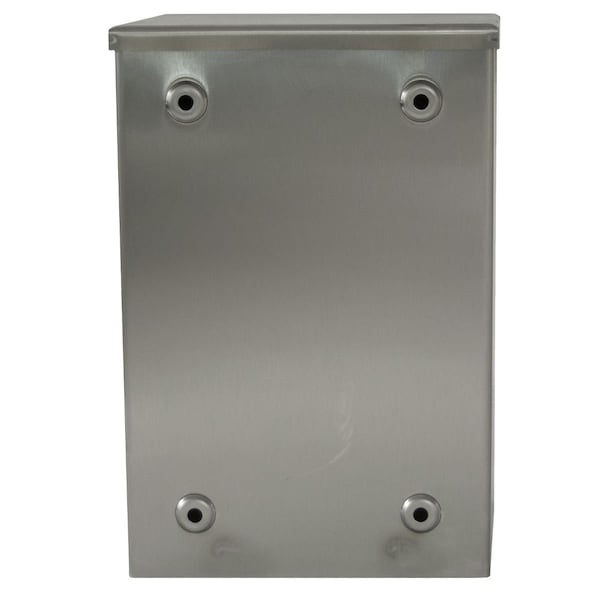

| Features | Body and cover are fabricated from 304 stainless steel; A slip-on reversible cover is securely fastened with screws located along the bottom edge; Mounting holes are located on the back on the enclosure |
| Series | RSC-NKSS |
| Weight | 9.6 lb. |
| Capacity | 480 cu in |
| Package Quantity | 1 |
