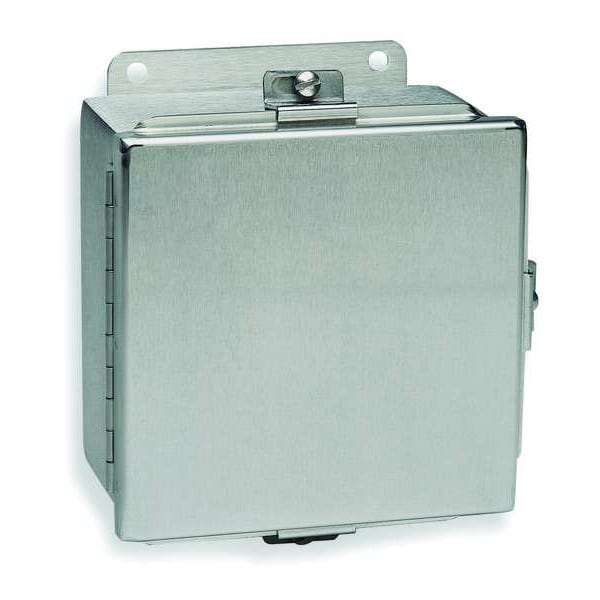

304 Stainless Steel Electrical Enclosures, 12 in H, 6 in D, 10 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #3 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 16 ga |
| Usable Opening Depth | 5.88 in |
| IP Rating | IP66 |
| Features | External Mounting Plates |
| Gasket | Seamless Polyurethane Poured in Place |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | BN4-CHSS |
| Enclosure Cover Features | Screwdown Clamps |
| Interior Panel | 6XC22 |
| Includes | Clamp, Stainless Steel Screws |
| Enclosure Material | Stainless Steel |
| Capacity | 720 cu in |
| Weight | 13 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Style | Solid |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | P1210, P1210G, P1210SS |
| Cover Closure Type | Hinged |
| Body Material Thickness | 16 ga |
| Package Quantity | 1 |
