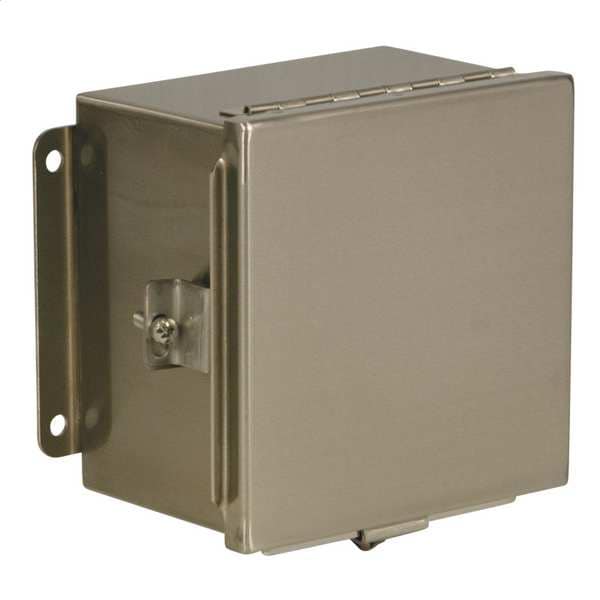

304 Stainless Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 5.88 in |
| Metal Gauge | 16 ga |
| Interior Panel | 4KP36 |
| Gasket | Neoprene |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | BN4-CHSS |
| Features | External Mounting Plates |
| Includes | Clamp, Stainless Steel Screws |
| Cover Type | Hinged Cover |
| Enclosure Material | Stainless Steel |
| Weight | 13 lb. |
| Capacity | 864 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Compatible Panel Model Number | P1212, P1212G, P1212SS |
| Cover Style | Solid |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Neoprene |
| Package Quantity | 1 |
