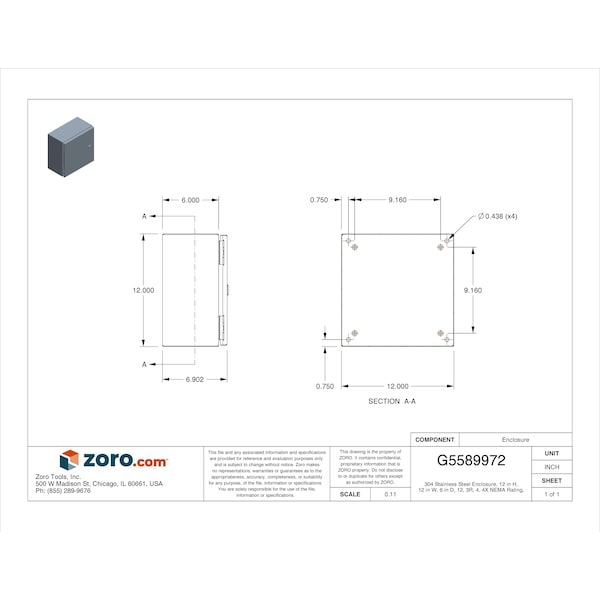

304 Stainless Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | N412-SSC |
| Interior Panel | 2NJ26, 2NJ27 |
| Metal Gauge | 14 ga |
| Features | Mounting Holes |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Usable Opening Depth | 5.88 in |
| Gasket | Seamless Polyurethane Poured in Place |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| Weight | 14 lb. |
| Capacity | 864 cu in |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP1212C, NP1212CG, NP1212SSC |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Package Quantity | 1 |
