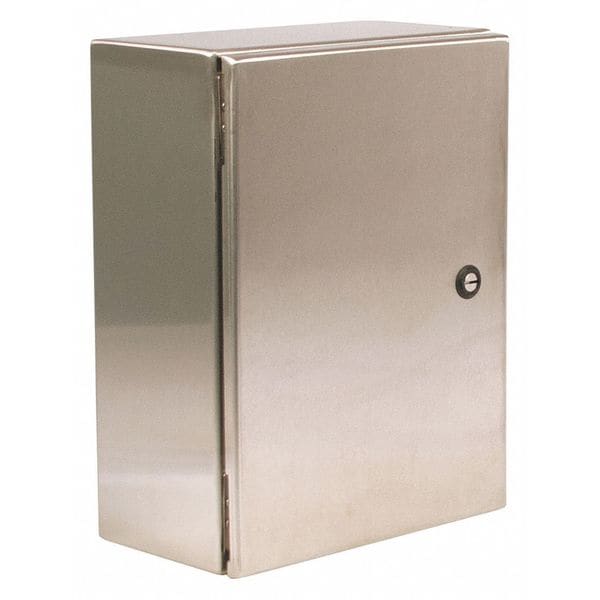

304 Stainless Steel Electrical Enclosures, 14 in H, 8 in D, 14 in W, NEMA 4X, Hinged

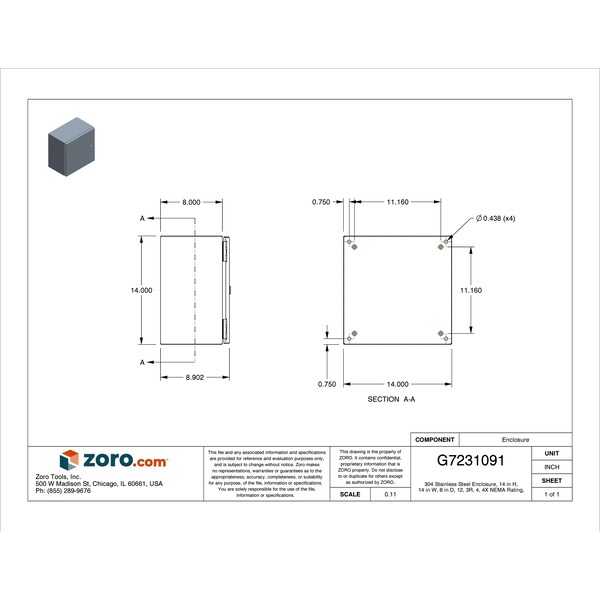

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 14 in |
| Nominal Height | 14 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | Mfr No. NP1414C, NP1414CG |
| Usable Opening Depth | 8 in |
| Enclosure Cover Features | 1/4 Turn Latch |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | Ultimate |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Metal Gauge | 16 ga |
| Gasket | Seamless Foam-In-Place |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. It is typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing, and waste water treatment facilities. Streamlined styling, flush latching, and attractive stainless steel finish complement any high tech electronic equipment. |
| Cover Closure Type | Hinged |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Cover Style | Solid |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP1414C, NP1414CG, NP1414SSC |
| Package Quantity | 1 |
