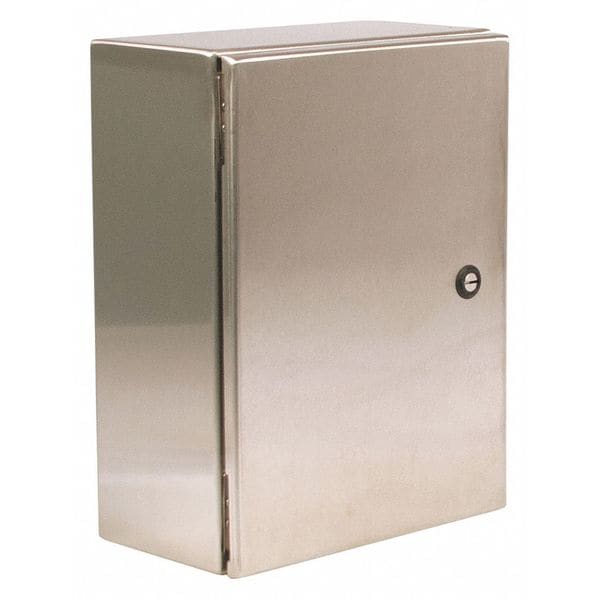

304 Stainless Steel Electrical Enclosures, 16 in H, 10 in D, 16 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Foam-In-Place |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Metal Gauge | 16 ga |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Usable Opening Depth | 10 in |
| Enclosure Cover Features | 1/4 Turn Latch |
| Series | Ultimate |
| Interior Panel | Mfr No. NP1616C, NP1616CG |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Weight | 29 lb. |
| Capacity | 2,560 cu in |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Compatible Panel Model Number | NP1616C, NP1616CG, NP1616SSC |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Body Material Thickness | 16 ga |
| Package Quantity | 1 |
