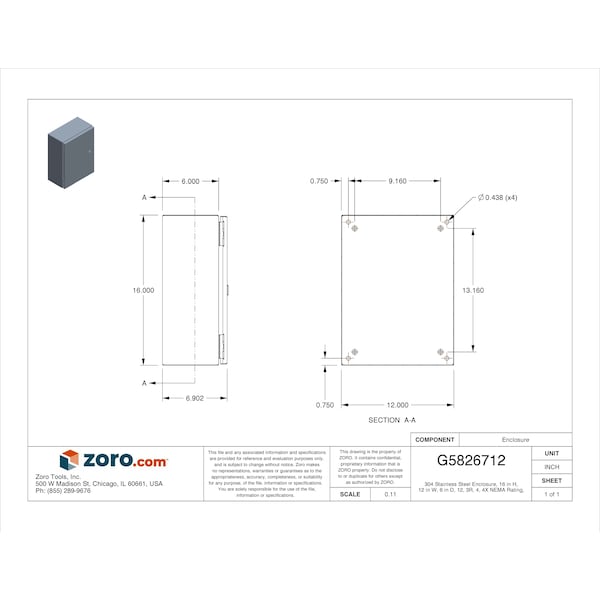

304 Stainless Steel Electrical Enclosures, 16 in H, 6 in D, 12 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 5.88 in |
| Interior Panel | 2NJ28, 2NJ29 |
| Metal Gauge | 14 ga |
| Series | N412-SSC |
| Gasket | Seamless Polyurethane Poured in Place |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| IP Rating | IP66 |
| Features | Mounting Holes |
| Enclosure Material | Stainless Steel |
| Weight | 20 lb. |
| Capacity | 1,152 cu in |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP1612C, NP1612CG, NP1612SSC |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Body Material Thickness | 14 ga |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
