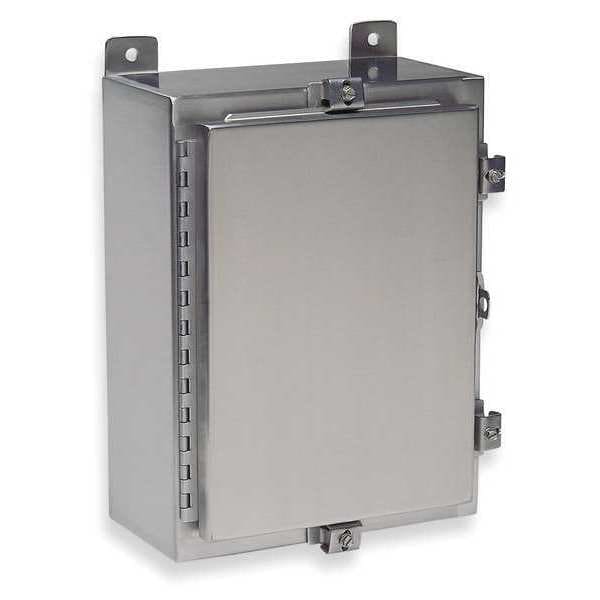

304 Stainless Steel Electrical Enclosures, 16 in H, 6 in D, 12 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Padlockable |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Feet |
| Usable Opening Depth | 5.88 in |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | SSN4 |
| Interior Panel | 2W827 |
| Metal Gauge | 14 ga |
| Enclosure Material | Stainless Steel |
| Capacity | 1,152 cu in |
| Weight | 21 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | NP1612, NP1612G, NP1612SS |
| Package Quantity | 1 |
