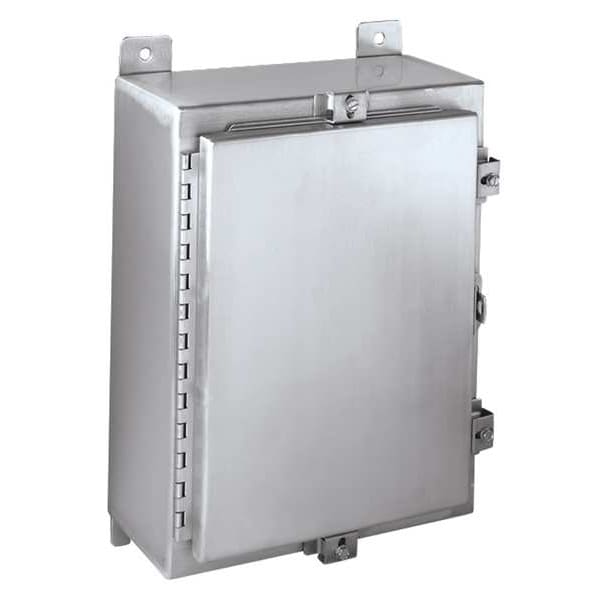

304 Stainless Steel Electrical Enclosures, 16 in H, 6 in D, 16 in W, NEMA 4X, Hinged

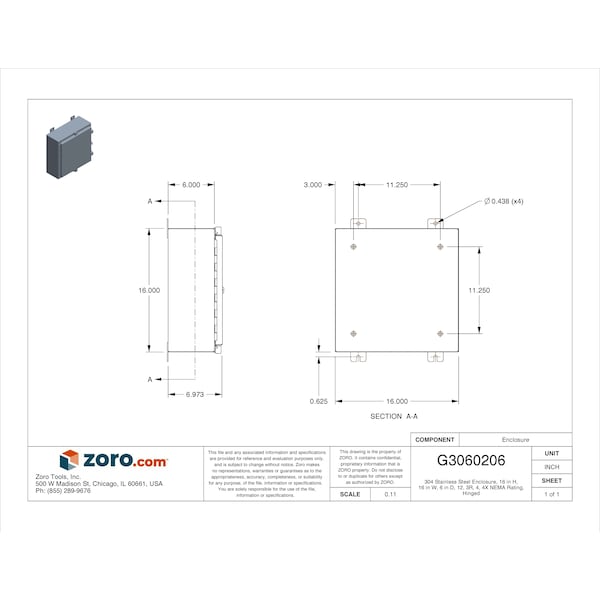

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | External Mounting Feet |
| Usable Opening Depth | 5.88 in |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Interior Panel | 31LA18 |
| Series | SSN4 |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| Weight | 26 lb. |
| Capacity | 3,128 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP1616, NP1616G, NP1616SS |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Package Quantity | 1 |
