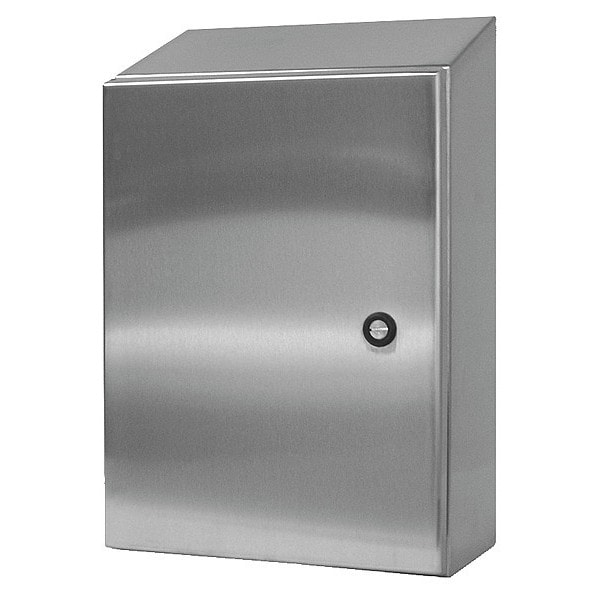

304 Stainless Steel Electrical Enclosures, 16 in H, 8 in D, 16 in W, NEMA 4, 4X, 12, 13, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | Mounting Holes |
| Metal Gauge | 14 ga |
| IP Rating | IP66 |
| Usable Opening Depth | 7.88 in |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Series | N412-CSSST |
| Interior Panel | 2NJ30 |
| Enclosure Material | Stainless Steel |
| Capacity | 2,048 cu in |
| Weight | 28 lb. |
| Application | Hubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | NP1616C, NP1616CG, NP1616SSC |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
