304 Stainless Steel Electrical Enclosures, 16 in H, 8 in D, 20 in W, NEMA 4X, Hinged

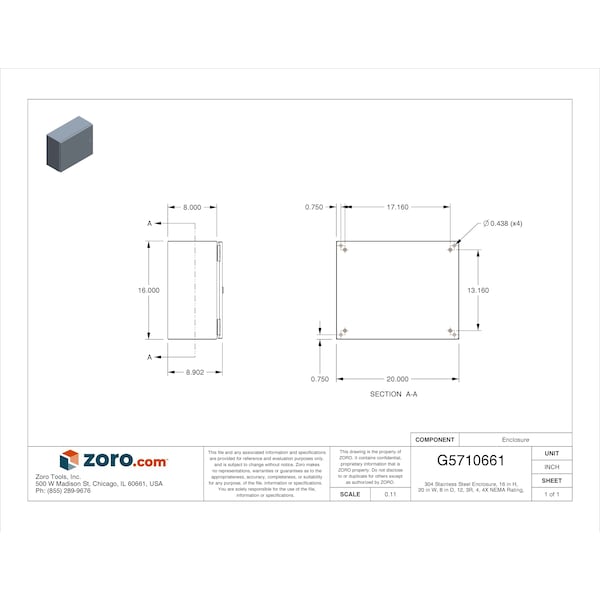

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 20 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 2NJ32, 2NJ33 |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Series | N412-SSC |
| Features | Mounting Holes |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Usable Opening Depth | 7.88 in |
| Metal Gauge | 14 ga |
| Enclosure Material | Stainless Steel |
| Capacity | 2,560 cu in |
| Weight | 30 lb. |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| Cover Style | Solid |
| Compatible Panel Model Number | NP2016C, NP2016CG, NP2016SSC |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Body Material Thickness | 14 ga |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Package Quantity | 1 |
