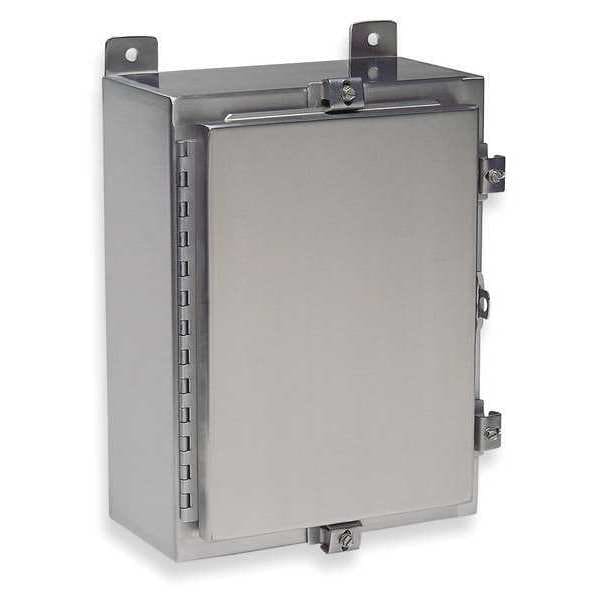

304 Stainless Steel Electrical Enclosures, 20 in H, 6 in D, 16 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 20 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Series | SSN4 |
| IP Rating | IP66 |
| Enclosure Cover Features | Padlockable |
| Usable Opening Depth | 5.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | 2W828 |
| Features | External Mounting Feet |
| Metal Gauge | 14 ga |
| Enclosure Material | Stainless Steel |
| Capacity | 1,920 cu in |
| Weight | 31 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | NP2016, NP2016G, NP2016SS |
| Cover Style | Solid |
| Package Quantity | 1 |
