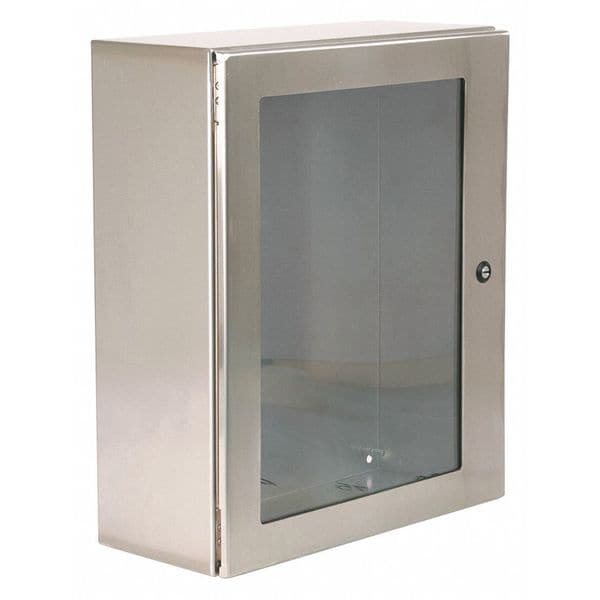

304 Stainless Steel Electrical Enclosures, 20 in H, 8 in D, 16 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Clear |
| Interior Panel | Mfr No. NP2016C, NP2016CG |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Enclosure Cover Features | 1/4 Turn Latch, Clear Window |
| Gasket | Seamless Foam-In-Place |
| Metal Gauge | 16 ga |
| Usable Opening Depth | 8 in |
| Series | Ultimate |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Capacity | 2,560 cu in |
| Weight | 31 lb. |
| Application | Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP2016C, NP2016CG |
| Body Material Thickness | 16 ga |
| Cover Style | Solid with Window |
| Package Quantity | 1 |
