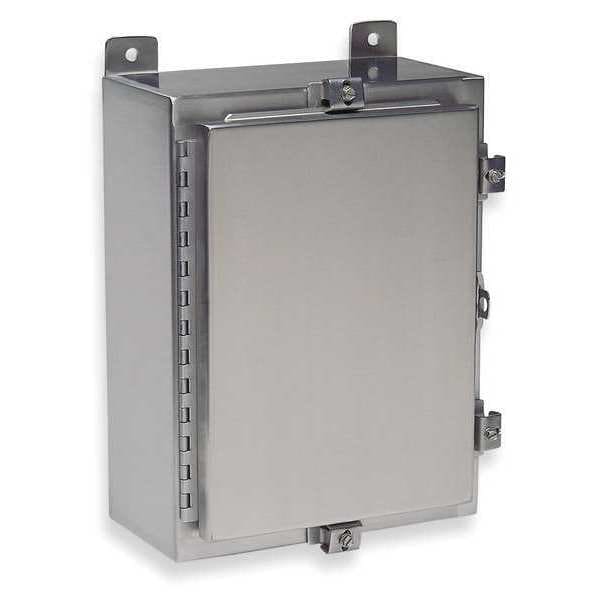

304 Stainless Steel Electrical Enclosures, 20 in H, 8 in D, 24 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Features | External Mounting Feet |
| Usable Opening Depth | 3.88 in |
| IP Rating | IP66 |
| Interior Panel | 2W828 |
| Enclosure Cover Features | Padlockable |
| Series | SSN4 |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Enclosure Material | Stainless Steel |
| Weight | 34 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP2016, NP2016G, NP2016SS |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
