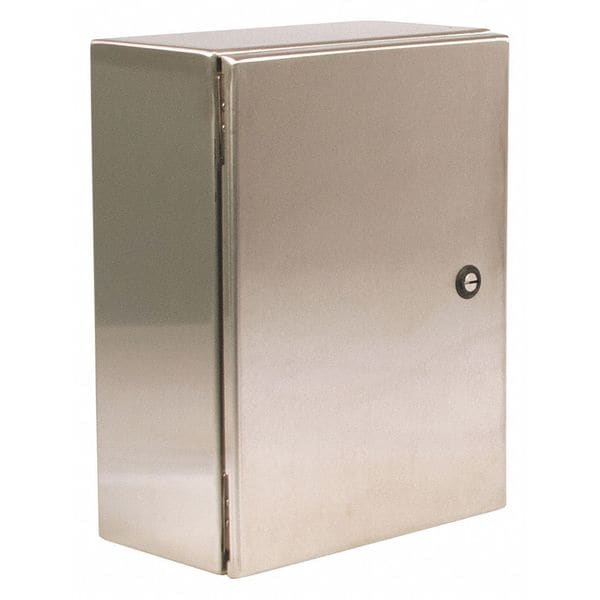

304 Stainless Steel Electrical Enclosures, 24 in H, 10 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | Ultimate |
| Interior Panel | Mfr No. NP2420C, NP2420CG |
| Gasket | Seamless Foam-In-Place |
| Metal Gauge | 14 ga |
| Usable Opening Depth | 10 in |
| Enclosure Cover Features | 1/4 Turn Latch |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Capacity | 4,800 cu in |
| Weight | 44 lb. |
| Application | Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pre |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | NP2020C, NP2020CG, NP2020SSC |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
