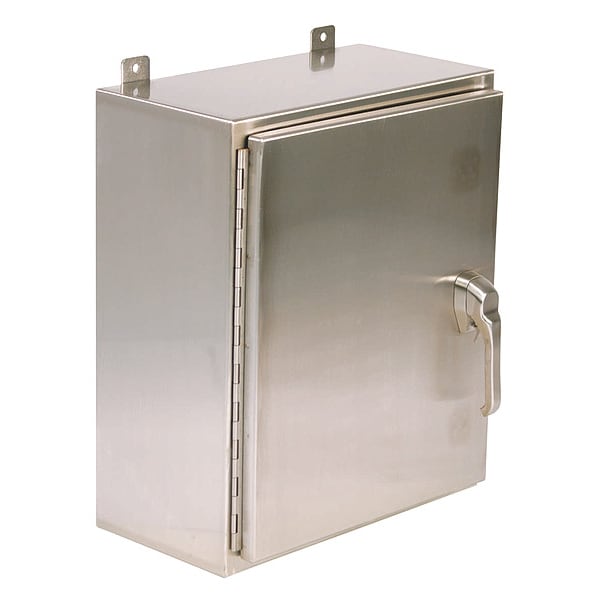

304 Stainless Steel Electrical Enclosures, 24 in H, 10 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 6XC19 |
| Standards | CSA Certified, cULus, UL Listed |
| Series | SSN4-PT |
| Features | External Mounting Feet |
| Enclosure Cover Features | 3 pt Latch Handle |
| Metal Gauge | 14 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| Usable Opening Depth | 9.88 in |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Weight | 49 lb. |
| Capacity | 8,505 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP2420, NP2420G, NP2420SS |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Cover Style | Solid |
| Package Quantity | 1 |
