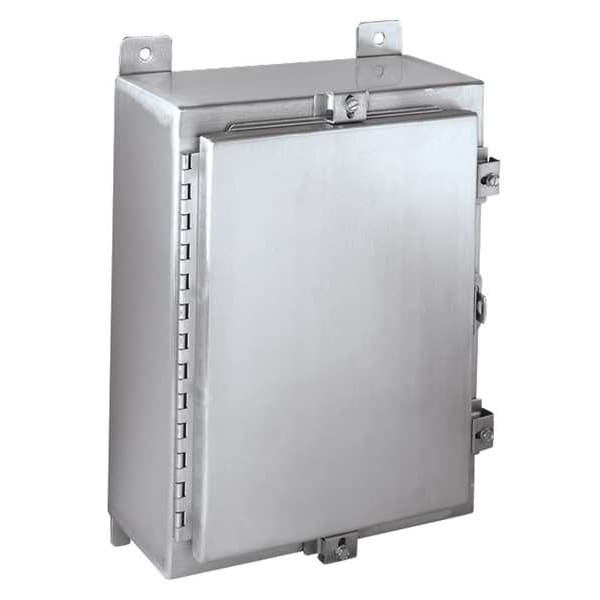

304 Stainless Steel Electrical Enclosures, 24 in H, 12 in D, 24 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14 ga |
| Features | External Mounting Feet |
| IP Rating | IP66 |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Usable Opening Depth | 11.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | 2W829 |
| Gasket | Seamless Polyurethane Poured in Place |
| Series | SSN4 |
| Enclosure Material | Stainless Steel |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP2424, NP2424G, NP2424SS |
| Body Material Thickness | 14 ga |
| Cover Style | Solid |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Package Quantity | 1 |
