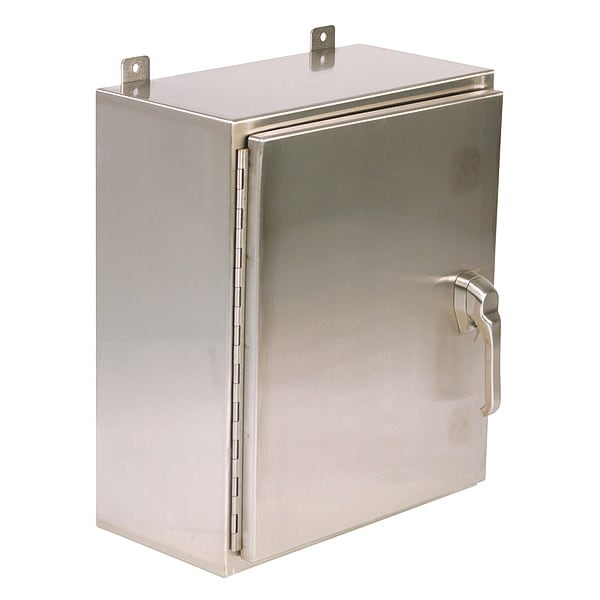

304 Stainless Steel Electrical Enclosures, 24 in H, 12 in D, 24 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Series | SSN4-PT |
| Interior Panel | 2W829 |
| Usable Opening Depth | 11.88 in |
| Enclosure Cover Features | 3 pt Latch Handle |
| Features | External Mounting Feet |
| Standards | CSA Certified, cULus, UL Listed |
| IP Rating | IP66 |
| Enclosure Material | Stainless Steel |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP2424, NP2424G, NP2424SS |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Package Quantity | 1 |
