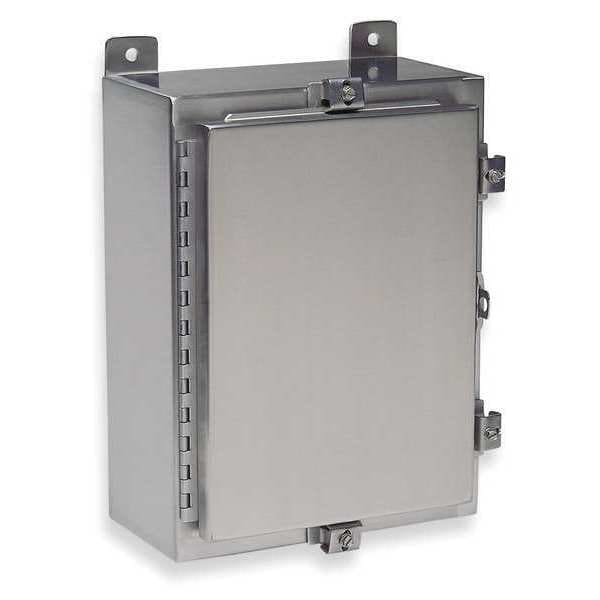

304 Stainless Steel Electrical Enclosures, 24 in H, 8 in D, 24 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 2W829 |
| Metal Gauge | 14 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| IP Rating | IP66 |
| Enclosure Cover Features | Padlockable |
| Usable Opening Depth | 7.88 in |
| Features | External Mounting Feet |
| Series | SSN4 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| Weight | 52 lb. |
| Capacity | 4,608 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Body Material Thickness | 14 ga |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP2424, NP2424G, NP2424SS |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
