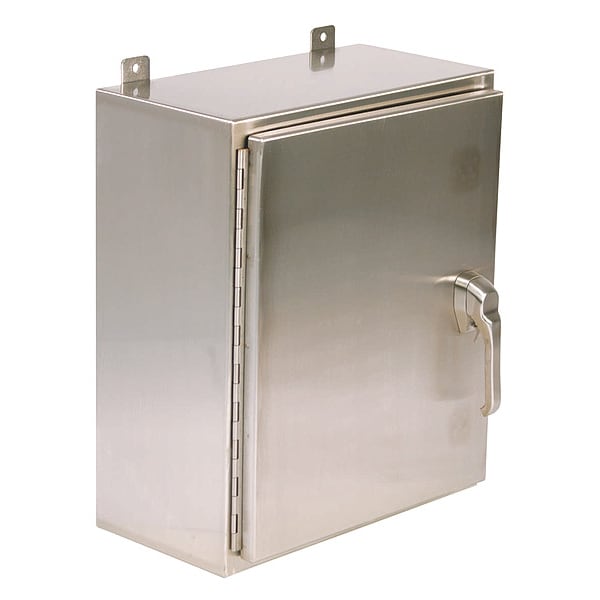

304 Stainless Steel Electrical Enclosures, 24 in H, 8 in D, 24 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | 3 pt Latch Handle |
| Standards | CSA Certified, cULus, UL Listed |
| Usable Opening Depth | 7.88 in |
| Series | SSN4-PT |
| Metal Gauge | 14 ga |
| Interior Panel | 2W829 |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Feet |
| IP Rating | IP66 |
| Enclosure Material | Stainless Steel |
| Weight | 52 lb. |
| Capacity | 7,290 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Compatible Panel Model Number | NP2424, NP2424G, NP2424SS |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
