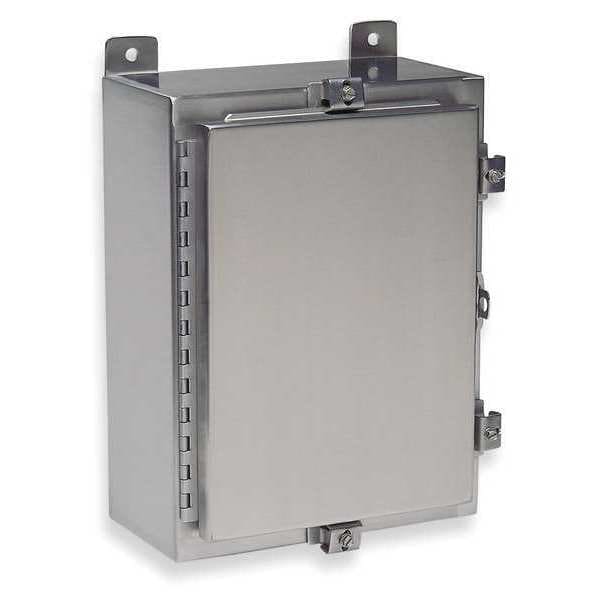

304 Stainless Steel Electrical Enclosures, 30 in H, 8 in D, 24 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 3.88 in |
| Features | External Mounting Feet |
| Enclosure Cover Features | Padlockable |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | SSN4 |
| Interior Panel | 3A924 |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Enclosure Material | Stainless Steel |
| Weight | 60 lb. |
| Capacity | 5,760 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP3024, NP3024G, NP3024SS |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Style | Solid |
| Package Quantity | 1 |
